Kafka Consumer #1 Startup / Rebalance Flow

---

개요

Kafka Consumer에 대한 세부 조사
Kafka Client와 Kafka Broker의 rebalance flow 및 requset / response data 조사
Kafka Consumer Assignor 관련 조사
Kafka Consumer STW 관련 조사

---

Consumer Startup

Group Coordinator 란

Kafka Broker에서 Consumer Group을 관리하기 위한 컴포넌트
기본적으로 Consumer Group 별로 존재
Cluster내 임의의 broker에 생성 됨
Consumer Group내 member의 변동을 감지하고 Rebalance를 관장
kafka topic을 이용해서 group의 metadata를 유지

총 3가지 단계로 coordinator와 consumer간의 협상이 일어난다.
 1. start group: coordinator를 찾는 단계
 2. join group: coordinator를 통해 consumer가 group에 join 하는 단계
 3. sync group: join된 group에서 토픽 / 파티션을 sync하는 단계

---

1. Start Group

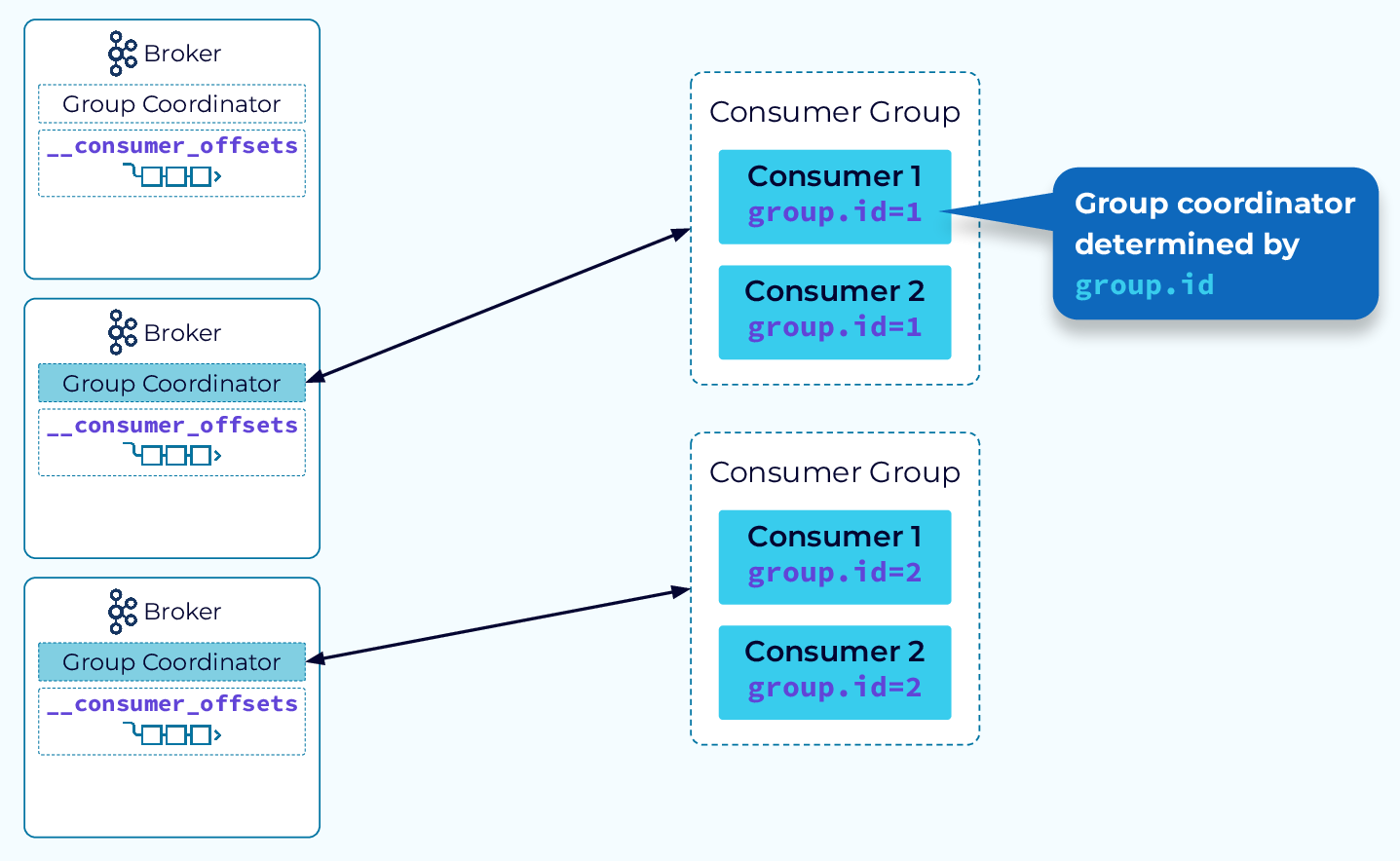

일반적으로 Consumer가 Startup 할 시 group.id 를 기반으로 findCoordinator 요청을 한다.
broker는 group.id를 기반으로 group coordinator를 생성할 브로커를 선정 및 생성하고 해당 coordinator의 endpoint를 응답

findCoordinatorRequestData (SCHEMA_4)

name	type	Desc
key_type	INT8	The coordinator key type. (Group, transaction, etc.)
coordinator_keys	String	The coordinator keys.

findCoordinatorResponseData (SCHEMA_4)

name	type	Desc
throttle_time_ms	INT32	The duration in milliseconds for which the request was throttled due to a quota violation, or zero if the request did not violate any quota.
coordinators	list	Each coordinator result in the response
coordinatorData.key	String	The coordinator key.
coordinatorData.node_id	INT32	The node id.
coordinatorData.host	String	The host name.
coordinatorData.port	INT32	The port.
coordinatorData.error_code	INT16	The error code, or 0 if there was no error.
coordinatorData.error_message	String	The error message, or null if there was no error.

---

2. Join Group

consumer들은 group coordinator로 join 요청 (구독 정보 포함)
group coordinator는 그룹에서 최초로 join 요청을 보낸 consumer를 leader로 선정
(최초 생성 시) Consumer Group의 offset 정보 등 group 관련 데이터 생성
consumer에게 memberId를 응답, leader에게는 memberList 및 subscription 정보 전달

JoinGroupRequestData (SCHEMA_8)

name	type	Desc
group_id	String	The group identifier.
session_timeout_ms	int	The coordinator considers the consumer dead if it receives no heartbeat after this timeout in milliseconds.
rebalance_timeout_ms	int	The maximum time in milliseconds that the coordinator will wait for each member to rejoin when rebalancing the group.
member_id	String	The member id assigned by the group coordinator.
group_instance_id	String	The unique identifier of the consumer instance provided by end user.
protocol_type	String	The unique name the for class of protocols implemented by the group we want to join. (consumer, connect)
reason	String	The reason why the member (re-)joins the group.
protocols	list<Protocol>	The list of protocols that the member supports. (Partition Assignment)
protocol.name	String	The protocol name. (Assigner Name)
protocol.metadata	bytes	The protocol metadata. (Subscription 객체를 serialize)

JoinGroupResponseData (SCHEMA_9)

name	type	Desc
throttle_time_ms	int	The duration in milliseconds for which the request was throttled due to a quota violation, or zero if the request did not violate any quota.
error_code	int	The error code, or 0 if there was no error.
generation_id	int	The generation ID of the group.
protocol_type	String	The group protocol name.
protocol_name	String	The group protocol selected by the coordinator.
leader	String	The leader of the group.
skip_assignment	boolean	True if the leader must skip running the assignment.
member_id	String	The member ID assigned by the group coordinator.
members	List<Member>
member.member_id	String	The group member ID.
member.group_instance_id	String	The unique identifier of the consumer instance provided by end user.
member.metadata	bytes	The group member metadata.

---

3. SyncGroup

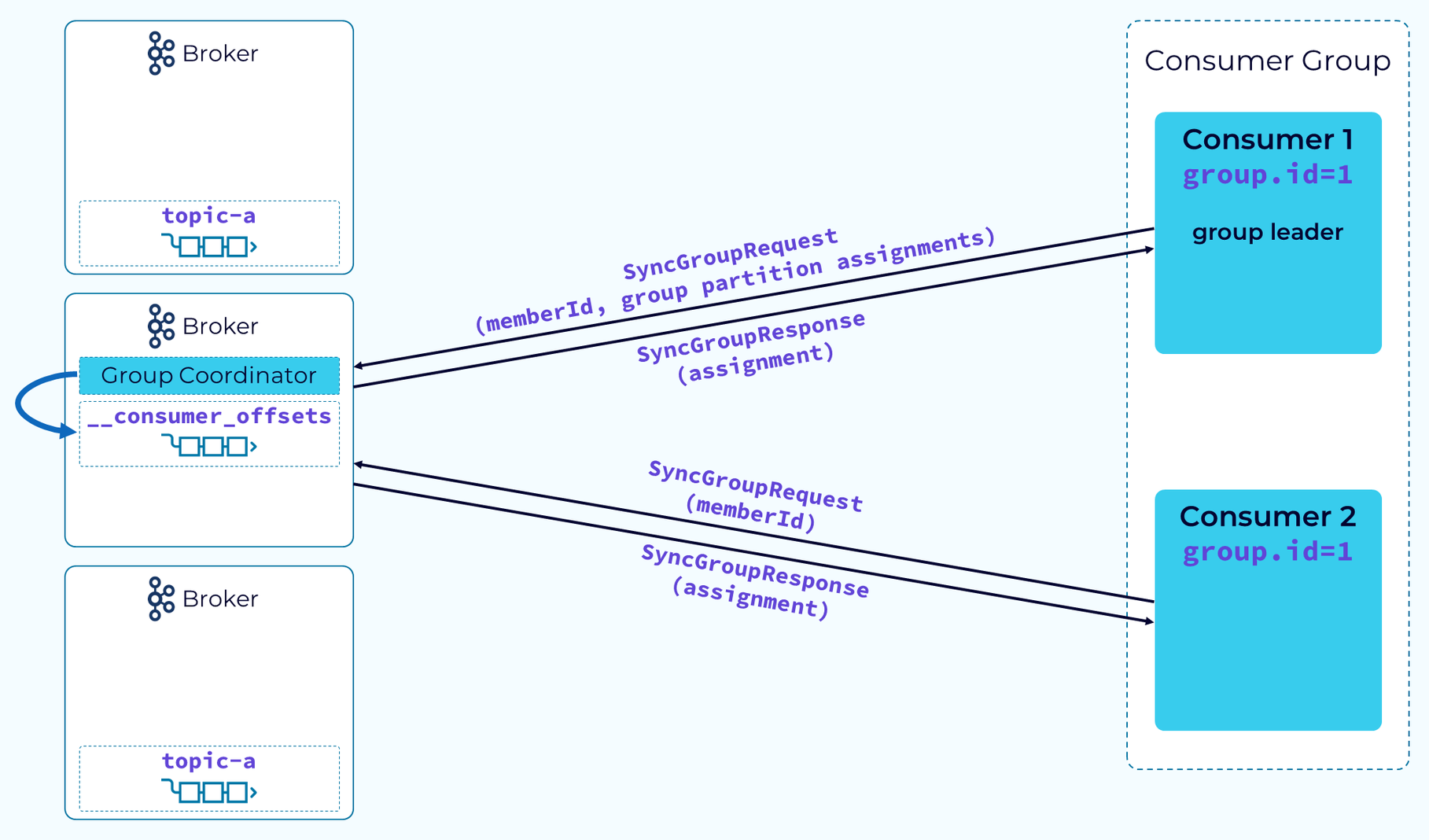

Consumer Group Leader는 구독할 파티션에 대한 전략을 수행
각 consumer member가 구독할 파티션 정보를 coordinator로 전달
다른 consumer들은 coordinator로 지속적으로 자신이 구독할 파티션에 대한 sync 요청을 보냄
consumer partition assign 전략은 다음편에 자세히 설명

SyncGroupRequestData (SCHEMA_5)

name	type	Desc
group_id	String	The unique group identifier.
generation_id	int	The generation of the group.
member_id	String	The member ID assigned by the group.
group_instance_id	String	The unique identifier of the consumer instance provided by end user.
protocol_type	String	The group protocol type.
protocol_name	String	The group protocol name.
assignments	List	Each assignment. (각 member 별 assign 된 결과 리스트)
assignments.member_id	Strring	The ID of the member to assign.
assignments.assignment	bytes	The member assignment. (assignment 결과를 serialize)

SyncGroupResponseData (SCHEMA_5)

name	type	Desc
throttle_time_ms	int	The duration in milliseconds for which the request was throttled due to a quota violation, or zero if the request did not violate any quota.
error_code	int	The error code, or 0 if there was no error.
protocol_type	String	The group protocol type. (consumer, connect)
protocol_name	String	The group protocol name. = assignment.getName()
assignment	bytes	The member assignment.



---

Consumer Rebalance

Rebalancing 조건

1. 인스턴스가 timeout안에 heartbeat 실패하여 group에서 제외 되었을 때
2. 인스턴스가 group에 추가되었을 때
3. 구독중인 토픽에 파티션이 추가 되었을 때
4. *로 topic을 subscribe 중에, 조건에 맞는 topic이 추가되었을 때
5. consumer group이 시작 될 때

Rebalance noti

heartbeat response 또는 offsetFetch response를 통해 consumer에게 notify한다.



---
